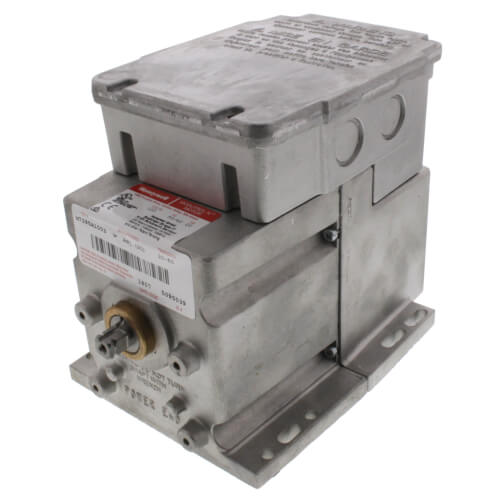

Honeywell Control Motor M7285A1003

Part Number: M7285A1003

Manufacturer: Honeywell

Brand: Honeywell

Control Motor, 4-20mA control signal, 120V, Spring Return, 0 Auxilary Switches, 60 in-lbs Torque

Description

$1,060.36

Please call (877) 560-3783 for availability.

Contact us for quantity discounts.

  • DESCRIPTION
  • FEATURES
  • SPECIFICATIONS

Honeywell M7285A1003 Modutrol IV Spring Return Motor

Application: Electric
Dimensions: 13 in. H x 9 in. W x 9 in. D
Includes: Transformer and Screw Terminal Adapter
Weight: 6 lb

M7285A1003 spring return Electronic Modutrol® motors control dampers and valves. Accepting a current or voltage signal from an electronic controller to position a damper or valve at any point between open and closed.

  • Modutrol IV Motor
  • 120 VAC
  • Spring Return
  • 60 Lb-In Torque
  • 30-60 Second Nominal Timing
  • Integral Junction Box Provides Nema 3 Weather Protection
  • 4-20 Ma Control Signal
  • 90-160 Degree Stroke
  • 90 Degree Factory Stroke Setting
  • Foot Mounted
  • Dual Ended Square Shaft
  • Modulating
  • Includes Transformer and Screw Terminal Adapter

The Honeywell M7285A1003 replaces M745S1002 Spring returnurn 120V 50/60 hz. 34VA. 60LB-IN 90 deg adj stroke. 30-60 sec timing

• Oil immersed motor and gear train for reliable performance and long life.
• Wiring box provides NEMA 3 weather protection.
• Quick-connect terminals standard—screw terminal adapter available.
• Adapter bracket for matching shaft height of older motors is standard with replacement motors.
• Die cast aluminum housing.
• Models available with integral auxiliary switches.
• Models available with adjustable zero and span.

Mounting:
Frequency:
Approvals:
Electrical Connections:
Supply:
Power Consumption:
Approvals:
Ambient Temperature Range:
Internal Auxiliary Switch:
Auxiliary Switch Ratings:
Stroke:
Shaft Dimensions:
Control Signal:
Fail Safe Mode:
Torque Rating:
Torque Rating:
External Auxiliary Switches:
Shaft Rotation:
Factory Stroke Setting
Timing, Nominal:
Feedback:
Shaft Dimensions
Motor shafts:
Deadweight Load on Shaft:
Internal Transformer:
Foot-mounted
50 Hz; 60 Hz
Underwriters Laboratories Inc. Listed: File No. E4436, Guide No. XAPX for USA and Canada
Screw terminals
Voltage 120V
Driving – 20 VA
EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD)
-40 F to +150 F / -40 C to +60 C
0
AFL-120 Vac- 7.2A; ALR-120 Vac-43.2A; AFL – 240 Vac- 3.6A; ALR-240 Vac- 21.6A
Adjustable; 90 to 160 degrees, Asymmetrical
0.375 in Square
Modulating, 4-20 mA
Non-Spring Return
150 lb-in.
17 Nm
Available
Clockwise upon control signal increase – as viewed from power end, normally closed
90 degrees
30-60 sec
No
10 mm Square
Dual-ended shaft
Either End-200 lbs.; Combined on both Shafts- 300 lbs.
50004263-002
