Karl Dungs Flow Control Modular Valve 267071
Part Number: 267071
Manufacturer: Karl Dungs
Brand: Karl Dungs
SV 1015/614 120VAC
Description
$976.22
1 in stock
*In-stock products usually ship the next day.
Contact us for quantity discounts.
- DESCRIPTION
- SPECIFICATIONS

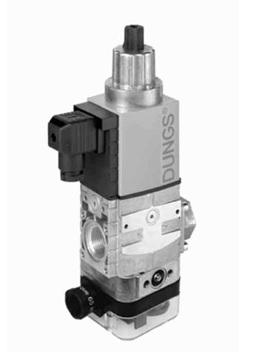

The Dungs 267071 Single Solenoid Shutoff Valve 1015/614 POC is an electrically operated, normally closed automatic shutoff valve for gas-burning equipment. It includes overtravel and a proof of closure switch, suitable for industrial and commercial heating. Made of aluminum, it has an NPT threaded inlet and flanged outlet.
The valve features fast opening and closing (<1 s) for SV and SV-DLE, with SV-DLE offering a slow opening of up to 20s, fast closing (<1 s), and a manually adjustable flow rate (0-100%). The proof of closure switch provides a visual indication of valve status. The conduit adapter and DIN connector are separate.
SKU: 300-4620
Brand: Dungs
Mfg. P/N: 267071
Approvals: CSA Certified, FM Approved
Connections: 1-1/2″ NPT or Rp Threaded Flanges, Sold Separately, Two Required
Ratings: NEMA Type 4 for NEMA 4 indoor only, NEMA Type 12
Voltage/Power:
- 120 Vac (+10%/-15%), 50/60 Hz 45 VA
- Max. operating pressure: 10 PSI (700 mbar)
- Temperature rating: -40 Deg F to +140 Deg F (-40 Deg C to +60 Deg C)
- Single-stage automatic shutoff valve, fast-open, fast-closing
- DIN-connector with 1/2″ NPT conduit adapter
Formerly: D244011 or 244-011P
