How to Quickly Identify a Replacement Part From a Photo

Posted in Products

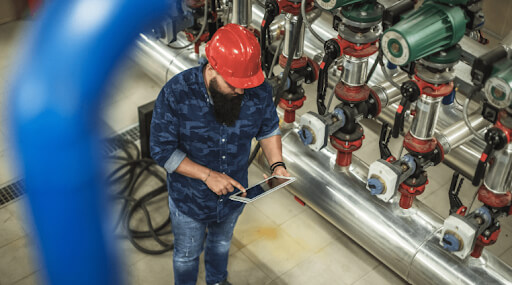

replacement part photo It’s rarely a perfect scenario. A system goes down, documentation is nowhere to be found, and the part tag is unreadable from years of heat, grime, or wear. In many facilities, the only thing available is a smartphone photo of the failed component.

For maintenance teams, this isn’t an exception, it’s a normal part of the job. The challenge is knowing how to turn that photo into an accurate replacement order without triggering delays, returns, or repeat downtime.

The good news is that most industrial components leave behind visual clues. When you know what to look for, a single photo can narrow the field quickly and confidently.

Start With Any Visible Markings — Even Partial Ones

Even when nameplates are damaged or worn smooth, many parts still reveal identifying details if you look closely.

Zoom in and scan the entire body of the component for:

Cast-in brand names or symbols
Partial model numbers or letter groupings
Pressure or temperature ratings
Certification or approval marks such as UL, FM, CSA, or CE

You don’t need a perfect serial number. A partial marking or pressure class can immediately eliminate dozens of incorrect options. Small details that seem insignificant often matter more than a full description recalled from memory.

Tip: Take multiple photos from different angles. Side and rear markings are often clearer than the front face.

Use the Flange Pattern as a Visual Fingerprint

Flange geometry is one of the fastest ways to distinguish between similar-looking components. Many parts share nominal sizes but differ slightly in how they mount.

Be sure to capture:

Number of bolts
Bolt orientation (inline or cross-pattern)
Flange shape (round, oval, square)
Approximate spacing between bolts

A single offset bolt or uncommon pattern can instantly rule out look-alike parts that otherwise appear identical. This step alone prevents many wrong orders.

Measure What You Can — Precision Isn’t Required

Exact measurements are helpful, but they aren’t mandatory. Even rough estimates provide valuable context.

Using a tape measure or a familiar object for scale, note:

Port or connection size
Overall body length
Outside diameter of the flange

Approximate dimensions help confirm compatibility and prevent ordering components that simply won’t fit, especially on older or modified systems.

Pay Attention to Hardware and Actuation Details

The component body is only part of the story. Supporting hardware and actuation often determine whether a replacement will actually work in your system.

Document details such as:

Manual, electric, or pneumatic actuation
Visible voltage markings on coils
Connector style or wiring orientation
Air line or conduit entry points

Two parts may appear identical until one small detail makes them incompatible with your setup. These “secondary” features are often where mistakes happen.

Share Photos With People Who Identify Parts Every Day

Once you’ve gathered clear photos, the next step matters just as much as the photos themselves: who you send them to.

Experienced technical support teams regularly identify components using visual details alone. By comparing markings, geometry, and mounting patterns against known equipment, they can:

Cross-reference visually similar components
Confirm compatibility with legacy systems
Catch common look-alike mistakes before an order is placed

This approach dramatically reduces downtime caused by incorrect replacements, return shipping, and repeat failures.

Common Photo Mistakes That Slow the Process

Avoid these issues when documenting a failed part:

Only photographing the front face
Skipping the flange or connection side
Leaving wiring, tubing, or actuators out of view
Sending a single blurry image instead of multiple clear ones

Clear photos from several angles almost always outperform long written explanations.

When Time Is Tight, Photos Plus the Right Support Make the Difference

In real facilities, perfect documentation is rare. Tags wear off. Manuals go missing. Systems get modified over time. When a critical component fails, waiting for exact part numbers can extend downtime far longer than necessary.

This is where experienced technical support becomes just as important as the photo itself.

Maintenance teams routinely send photos of failed components to the Combustion Plus when they need help fast. Our team specializes in combustion and thermal transfer equipment and works daily with legacy systems, mixed OEM installations, and hard-to-identify parts. By analyzing markings, flange patterns, dimensions, and hardware details, we help confirm the correct replacement before an order is placed.

Instead of guessing from a catalog or risking a return, our support team helps you:

Identify compatible replacement parts from limited visual information
Avoid common look-alike mistakes that delay repairs
Source parts that work with older or modified systems
Get systems back online with fewer surprises

If you’re facing a failed component and all you have is a photo, you don’t have to solve it alone. Contact Combustion Plus to connect with a technical support team that understands real-world maintenance challenges and helps you move from failure to fix faster.
